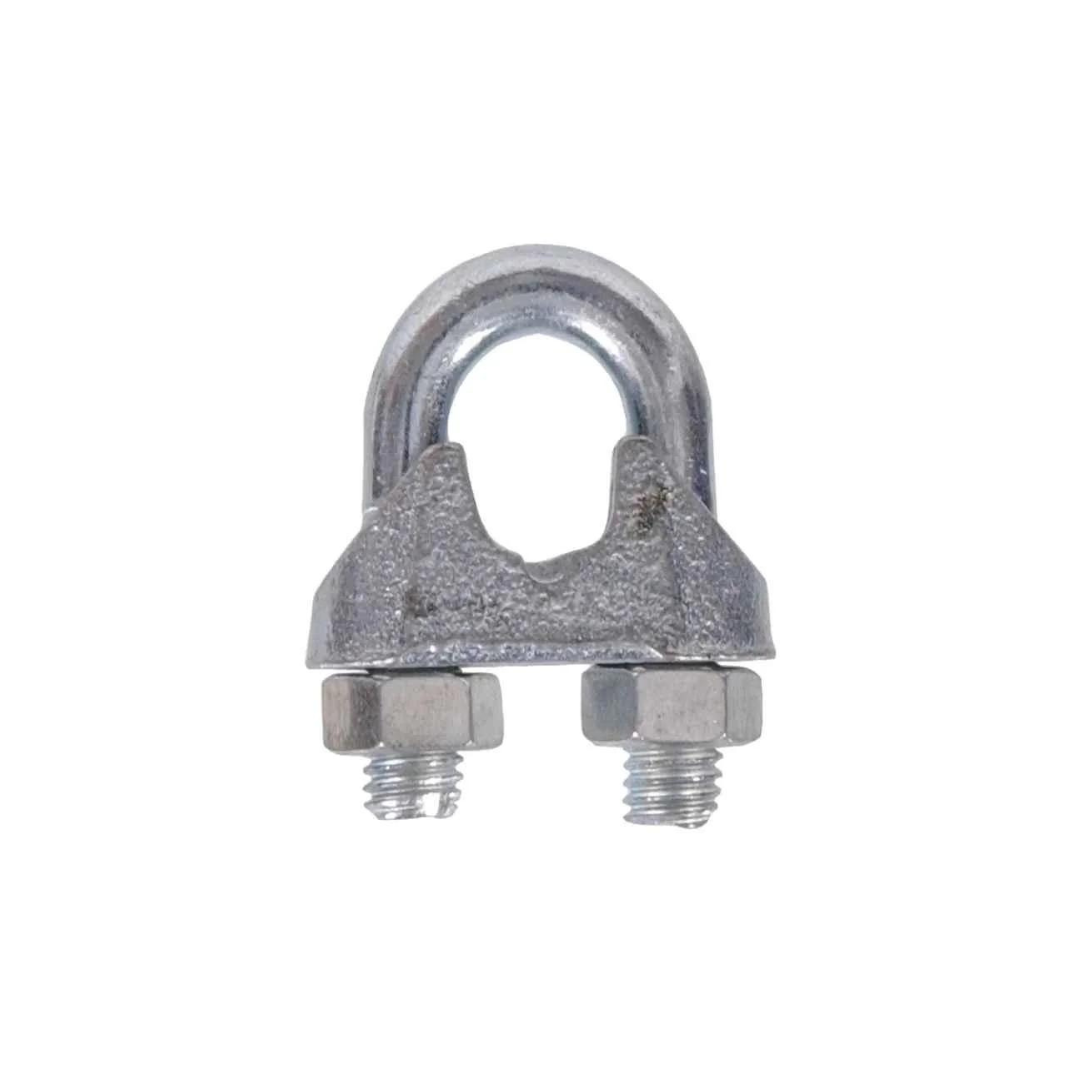

This description should cover the essential aspects of a GI wire rope clip designed for 3 mm wire ropes. If you have specific requirements or need further details, feel free to ask.

• Material:
  • Galvanized Iron (GI): This material is coated with a layer of zinc to prevent rust and corrosion, making it durable for outdoor and marine applications.
• Wire Rope Size:
  • Diameter: 3 mm. The clip is specifically designed to fit wire ropes of this diameter.
• Design:
  • Type: U-bolt style clip, which consists of a U-shaped bolt, a saddle, and two nuts.
  • Components:
    • U-Bolt: The U-shaped metal piece that wraps around the wire rope.
    • Saddle: The curved metal piece that sits on top of the wire rope, ensuring a tight grip when the U-bolt is tightened.
    • Nuts: Two nuts that secure the U-bolt and saddle in place.
• Function:
  • Purpose: Used to clamp and secure the ends of wire ropes, creating a loop or fixing the wire rope to other components. Essential for applications such as lifting, rigging, and securing loads.
• Specifications:
  • Size: Designed for 3 mm diameter wire ropes.
  • Finish: Galvanized coating for enhanced resistance to environmental factors.
• Installation:
  • Procedure: Place the wire rope into the saddle, position the U-bolt over the rope, and tighten the nuts to secure the rope firmly in place. It’s important to ensure the nuts are tightened evenly to avoid slippage or damage to the wire rope.
• Applications:
  • Common Uses: Ideal for use in various industries including construction, marine, agriculture, and general rigging tasks.
• Safety Note:
  • Inspection: Regularly inspect the wire rope clip for signs of wear or damage to ensure safe operation. Over-tightening or improper installation can compromise the effectiveness of the clip.
